Key Specification

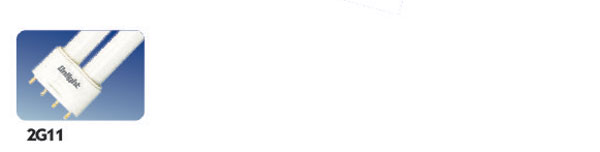

PLL 2G11 Single-H (4pin) series
---Special design, maximum illuminating value. Well-distributed light, the best choice for illumination
---Small and exquisite volume and shape. Suitable for different kinds of design and innovation of lamps and lanterns. high luminosity and long life more than 10000hours .
---High quality starter and noise filter capacitor are installed inside the single cap of the lamp.
---Only half or less half length as the traditional fluorescent lamps but has the same luminous flux.
Operating voltage: 110 - 130V or 220 - 240V
Performance frequency: 50HZ or 60HZ
Color temperature options: 2700K/6400K
|
Model |
Voltage |
Watts |
Base |
|
(mA) |
Lumens |
Tube Dia. |
Lamp size(mm) |
|
(W) |
|
V |
|
(LM) |
(mm) |
H1(mm) |
H2(mm) |
D(mm) |
|
ESL138-PLL-18W |
220/240 |
18 |
2G11 |
58±6 |
375 |
1120-1200 |
17 |
219 |
212 |
43 |
|
ESL138-PLL-24W |
220/240 |
24 |
2G11 |
87±10 |
345 |
1600-1700 |
17 |
316 |
209 |
43 |
|
ESL138-PLL-36W |
220/240 |
36 |
2G11 |
106±10 |
435 |
2510-2670 |
17 |
415 |
406 |
43 |
|
ESL138-PLL-40W |
220/240 |
40 |
2G11 |
126±10 |
320 |
2910-3000 |
17 |
532 |
526 |
43 |
|
ESL138-PLL-55W |
220/240 |
55 |
2G11 |
101±10 |
550 |
3970-4100 |
17 |
537 |
530 |
43 |
Lead Time: 30 days
FOB Port: Shanghai
Minimum Order: 3,000PCS
Sample Available
|
